John Deere Engines Piston and Connecting Rod Installation Guide

 John Deere engines   piston  and   connecting rod installation Guide


NOTE: Pistons must be installed in the cylinder liner
from which they were removed.



1. Coat pistons and rings with clean engine oil. Install
pistons in liners, using JDE84 piston ring compressor.
NOTE: Make sure that “FRONT” mark (A) on the top of
each piston faces toward front end of cylinder
block.

JCB ServiceMaster 4 v22.9.3 [12.2022] Diagnostic Software Download and Installation



2. Push piston down until top ring is in liner.

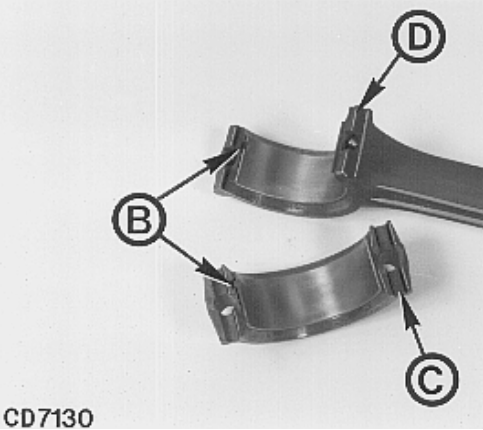

   3. Install bearing inserts, making sure small tangs (B) on
