How Checking and Cleaning John Deere Tractor 100 Series Engine Air Cleaner Elements s (LA155, LA165 and LA175)



1. Park machine safely. (See Parking Safely in the SAFETY section.)
2. Let engine cool.
3. Lift hood.
4. Clean dirt and debris from the air cleaner cover.

John Deere Service Advisor Electronic Data Link EDL2 Diagnostic Adapter High Quality

5  Loosen two knobs (A) and remove cover (B).

IMPORTANT:

IMPORTANT: Avoid damage! Dirt and debris can enter the engine

through a damaged filter element:

• Do not wash paper element.
• Do not attempt to clean paper element by tapping against  another object.

• Do not use pressurized air to clean element.
• Replace element only if it is very dirty, damaged or the seal is cracked.

03.2024 John Deere Service Advisor 5.3.235 AG/CF Diagnostic Software

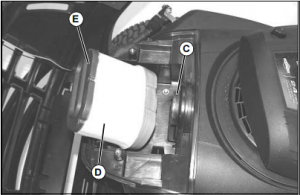

6 Pull filter assembly from air cleaner base (C). Inspect the foam

precleaner (D) without removing it. If the foam precleaner is dirty:

a.Remove it from the paper filter carefully.

b.Wash precleaner in a solution of warm water and liquid detergent. Do

not use oil.

c.Rinse precleaner thoroughly. Squeeze out excess water in a dry cloth

until precleaner is completely dry.

7 Inspect the paper filter element (E). If the paper filter element is

damaged or dirty, replace with new filter.

8 Clean air cleaner base very carefully, preventing any dirt from falling into

carburetor.

9 Install foam precleaner on paper filter element.

10 Install new filter assembly back onto air cleaner base.

11 Install air cleaner cover and tighten two knobs.

12 Lower hood.
