2 Remove the starter key.

06.2025 JCB ServiceMaster 4 v25.3.3 Diagnostic Software with SW Files Download and installatiom

! WARNING

Make sure the engine cannot be started. Disconnect the

battery before doing this job.

2-3-3-5

3 Raise the Bonnet

4 Remove both Side Panels

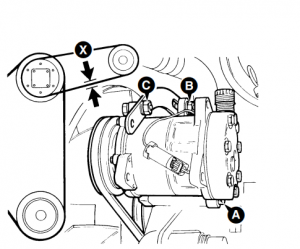

5 Loosen pivot fastening bolt A. Loosen adjustment link

fastening bolts B and C.

6 Position the compressor so that there is approximately 10 mm (3/8 in) slack at point X midway along the belt.

7 Tighten bolts A, B and C. Make sure that bolt A is the

last to be tightened.

Note: If a new belt is fitted, check the belt tension after the

first 20 hours of operation.
